Ubiquiti UA-G3-Pro UniFi Access G3 Pro Reader (Black)

Black

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

IP55

136 g (4.8 oz)

Polycarbonate, glass

Aluminium alloy

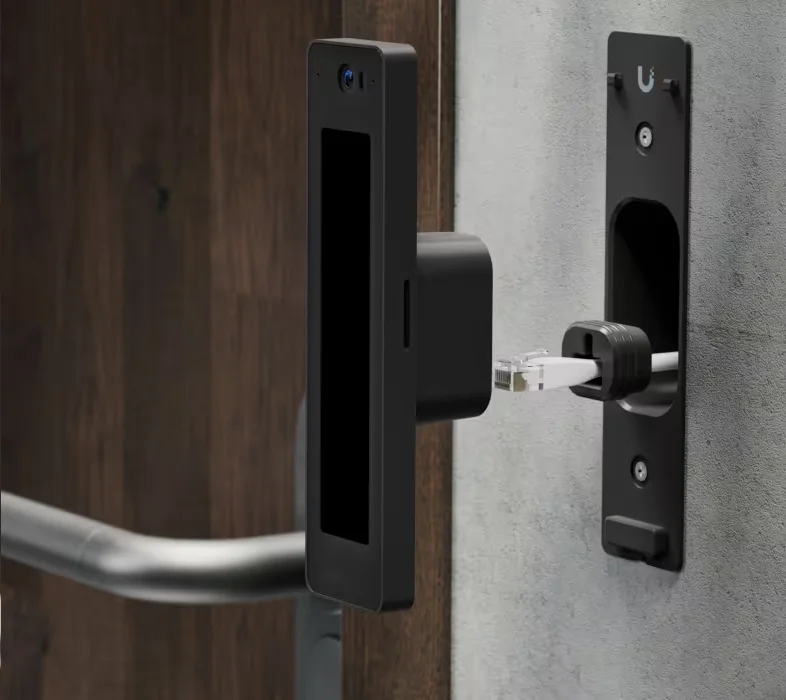

Wall, gang-box mount (Included)
Angle mount, junction box (Optional)

Yes

Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)

5 to 90% noncondensing

(1) GbE RJ45 port

BLE 4.2, NFC

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

6W

48V DC

Air: ±15kV, contact: ±8kV

Proximity sensor

120 mm (4.7") diagonal

Capacitive touch

480 nits (Typical)

Portrait

1280 x 286 px

Yes

Yes (1x 1.5W)

R/G/B/W/Amber

(1) Factory-reset

13.56 MHz

< 30 mm (1.18")

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
MIFARE Classic / MIFARE DESFIRE
Sony FeliCa™ (ID only)
NFC Forum tags T1T, T2T, T3T, T4T and T5T
ECP 2.0

Cat 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: I

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

UA-G3-Pro-B, V01

Access

The software version can be checked at https://unifi.ui.com
