Ubiquiti UK-Ultra UniFi Swiss Army Knife Indoor/Outdoor AP

Name: Ubiquiti UK-Ultra UniFi Swiss Army Knife Indoor/Outdoor AP
Brand: Ubiquiti
SKU: UK-Ultra
Price: 179 AUD
Availability: OutOfStock

Write a review

$179.00

Ubiquiti UK-Ultra UniFi Swiss Army Knife Indoor/Outdoor AP

Reviews 0

No reviews have been added for this product

Reviews

Swiss Army Knife

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.

WiFi 5, Dual-radio 2.4 / 5 GHz, 4 spatial streams

115 m² Coverage

200+ Connected Devices

IPX6 Weatherproofing

PoE Power Method

GbE Uplink

Compact Indoor/Outdoor AP

Roughly the size of an iPhone, the Swiss Army Knife Ultra is Ubiquiti's most compact WiFi access point yet. It is specifically designed to provide reliable connectivity at an affordable price point.

Versatile Access Point

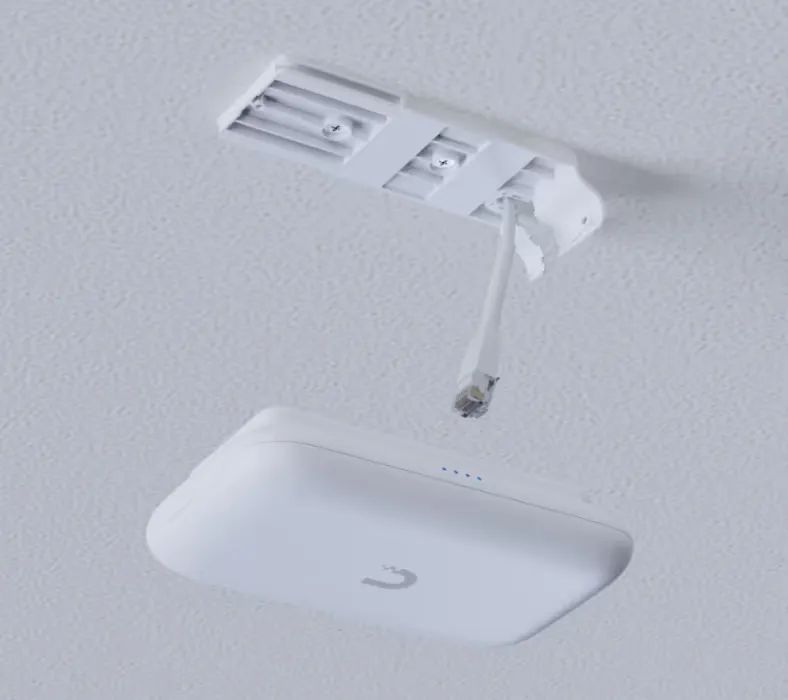

It can be installed indoors or outside, with support for versatile wall, ceiling and pole mounting.

Instant WiFi

Plug and play with the internal antenna for instant WiFi, or attach an external long-range antenna* for performance tailored to your use case.

* Omni Antenna & Desktop Stand Kit sold separately

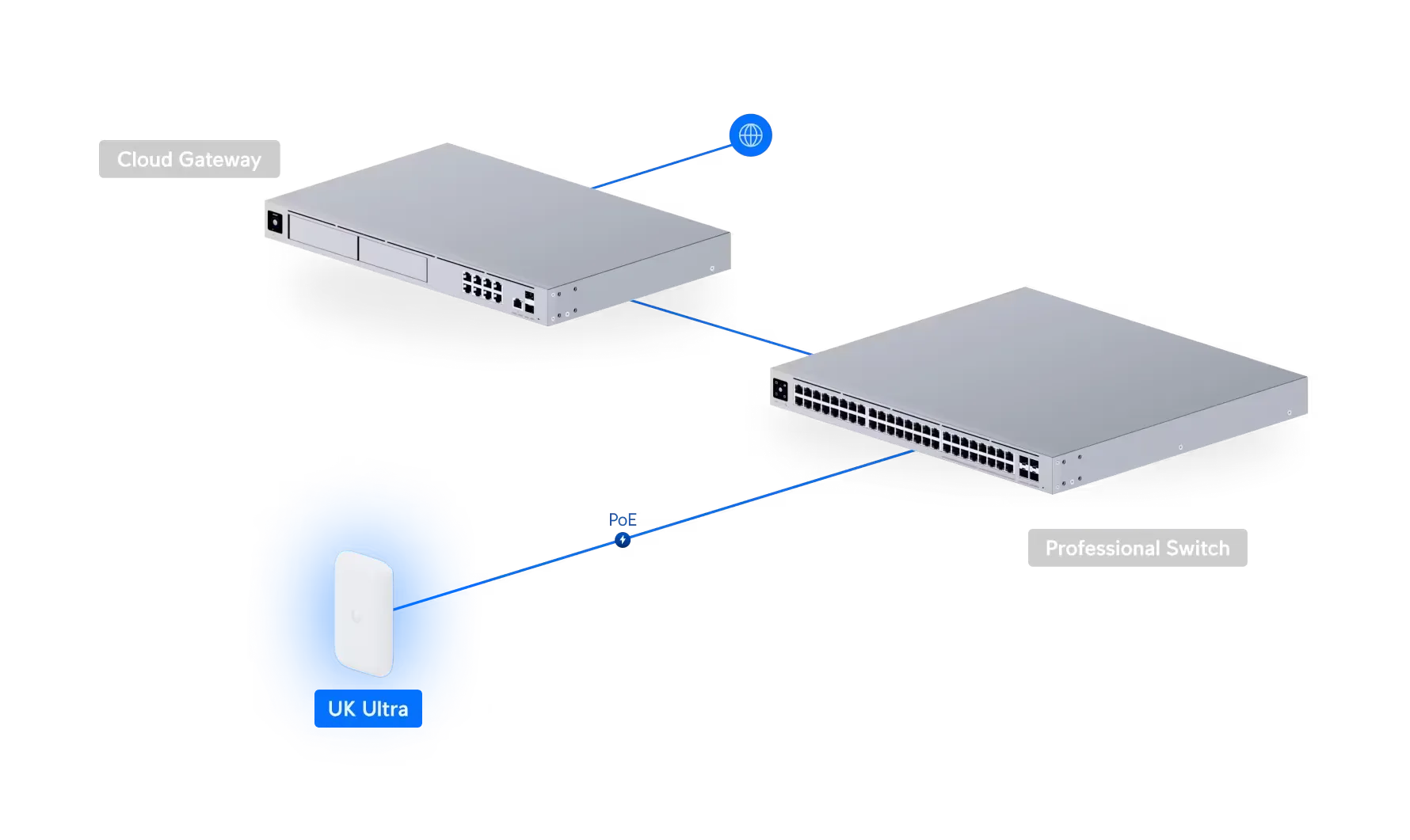

Deployment

Overview

Dimensions

137 x 84 x 34 mm (5.4 x 3.3 x 1.3")

WiFi Standard

WiFi 5

Spatial Streams

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

GbE

Mounting

Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included)
Desktop Stand (Sold Separately)

Weatherproofing

IPX6

Power Method

PoE

Performance

MIMO

5 GHz: 2 x 2 (DL MU-MIMO)
2.4 GHz: 2 x 2 (DL MU-MIMO)

Max. Data Rate

5 GHz: 866.7 Mbps (BW80)
2.4 GHz: 300 Mbps (BW40)

Antenna Gain

5 GHz: 6.1 dBi
2.4 GHz: 4.7 dBi

Max. TX Power

5 GHz: 20 dBm
2.4 GHz: 20 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11ac (WiFi 5):
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

802.11n:
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page
Voucher Authentication
Payment-Based Authentication
External Portal Server Support
Password Authentication
Guest Network Isolation

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

Supported Voltage Range

44—57V DC

Networking Interface

(1) GbE RJ45 port

Weight

173 g (6.1 oz)

Wind Loading

33.2 N at 200 km/h (7.5 lbf at 125 mph)

Pole Mount Diameter

1~2" (25–50 mm)

Antennas

(1) Internal antenna
(2) RP-SMA connectors

Management

Ethernet

Enclosure Material

UV-stabilised polycarbonate

Mount Material

Polycarbonate, SGCC steel, plastic

LEDs

System
(1) Power: White/Blue
(4) Mesh Signal: Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC, Anatel: 06237-24-08356

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz

Ambient Operating Temperature

-40 to 60° C (-40 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 7.5.187 and later
