Ubiquiti

Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port 2.5GbE PoE+ Layer 3 Switch

Name: Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port 2.5GbE PoE+ Layer 3 Switch
Brand: Ubiquiti
SKU: USW-Enterprise-48-PoE
Price: 3269 AUD
Availability: InStock

Write a review

$3,269.00

Enterprise 48 PoE (Gen1)

A 48-port, Layer 3 switch with 2.5 GbE PoE+ output.

48 2.5 GbE RJ45

4 10G SFP+

PoE Output: Up to PoE+

720 W PoE Availability

Note. These switches are not compatible with the PoE++ requirements of the new U7 and E7 Access Points. We recommend using Enterprise Campus switches for such deployments.

Industry Leading Hardware

The Enterprise 48 PoE (Gen1) is a fully managed switch with 48 2.5GbE PoE+ ports, 4 10G SFP+ ports and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).

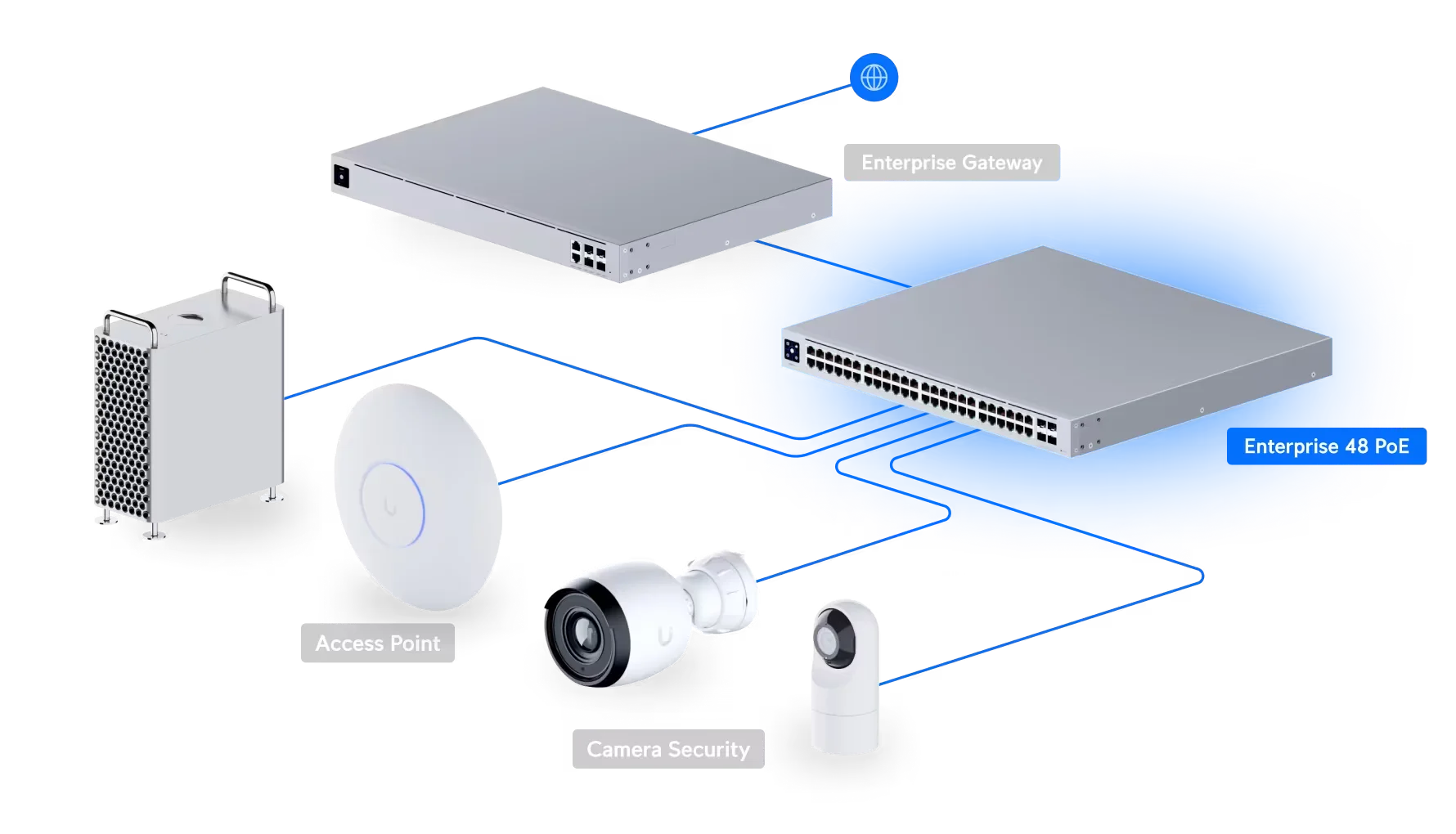

Deployment

Overview

Dimensions

442 x 400 x 44 mm (17.4 x 15.7 x 1.7")

Port Layout

2.5 GbE RJ45:
48 (All PoE+) (2.5G/1G/100M/10M)

10G SFP+:
4

Max. PoE Output

Up to PoE+

Total PoE Availability

720W

Redundancy

DC Power Backup

* With UniFi RPS

Layer 3

Yes

Form Factor

Rack mount (1U)

Performance

Switching Capacity

160 Gbps

Total Non-Blocking Throughput

160 Gbps

Forwarding Rate

238 Mpps

Supported VLANs

1,000

MAC Address Table Size

32,000

L3 Table Size

ARP Entries: 16,000
IPv4 Routes: 16,000

Packet Buffer Size

4 MB

Access Lists

IPv4: 128
MAC: 128

Layer 3 Features

DHCP Server (Local Networks)

Yes

DHCP Relay

Yes

Inter-VLAN Routing (Local Networks)

Yes

Static Routing (Local Networks)

Yes

Layer 2 Features

LACP Port Aggregation

Yes

STP & RSTP

Yes

QoS (DSCP)

Yes

Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

Yes

Advanced IGMP Configuration (Querier, Fast Leave, Router Port)

Yes

IGMP Snooping

Yes

802.1X Control

Yes

MAC-Based ACLs & Device Isolation

Yes

DHCP Snooping & Guarding

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

MAC Address Blocking

Yes

IP-Based ACLs & Network Isolation

Yes

MAC-Based Port Restriction

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

LLDP-MED

Yes

Voice VLAN

Yes

Loop Protection

Yes

Hardware

PoE Ports

PoE+: 48

Max. PoE Wattage per Port by PSE

PoE+: 32W

Max. Power Consumption

150W (Excluding PoE Output)
870W (Including PoE Output)

Power Method

(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP RPS DC input

Power Input Method

AC input

Power Supply

AC/DC, internal, 870W

Supported Voltage Range

100—240V AC

Management

Ethernet
AR

Heat Dissipation (Excluding PoE Output)

511.8 BTU/hr

Weight

Without mounting brackets: 6.2 kg (13.7 lb)
With mounting brackets: 6.3 kg (13.9 lb)

Enclosure Material

SGCC steel

Mount Material

SGCC steel

Supported Rack Depth

600 - 1,200 mm (23.6- 47.2" )

LCM Display

1.3" touchscreen

ESD/EMP Protection

Air: ± 16kV, contact: ± 12kV

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, Anatel

Software

Application Requirements

UniFi Network
Version 6.2.26 and later
