Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9")
Rack: 600 x 703 x 639 mm (23.6 x 27.7 x 25.2")

Packaging: 31.8 kg (70.1 lb)
Rack: 25.8 kg (56.9 lb)

SPCC steel
Door/side panels: 1.2 mm (0.05")
Main body: 1.2 mm (0.05")
Posts: 2 mm (0.08")

White

Powder coating

Yes

12U

4 post, enclosed cabinet

Square

Default 434 mm (17.1")
Max. 559 mm (22")
Adjustable pitch 25 mm (1")

80 kg (176 lb)

Perforated
Default left-hand outswing, reversible

Solid
Swing-out

(2) Solid, removable and lockable

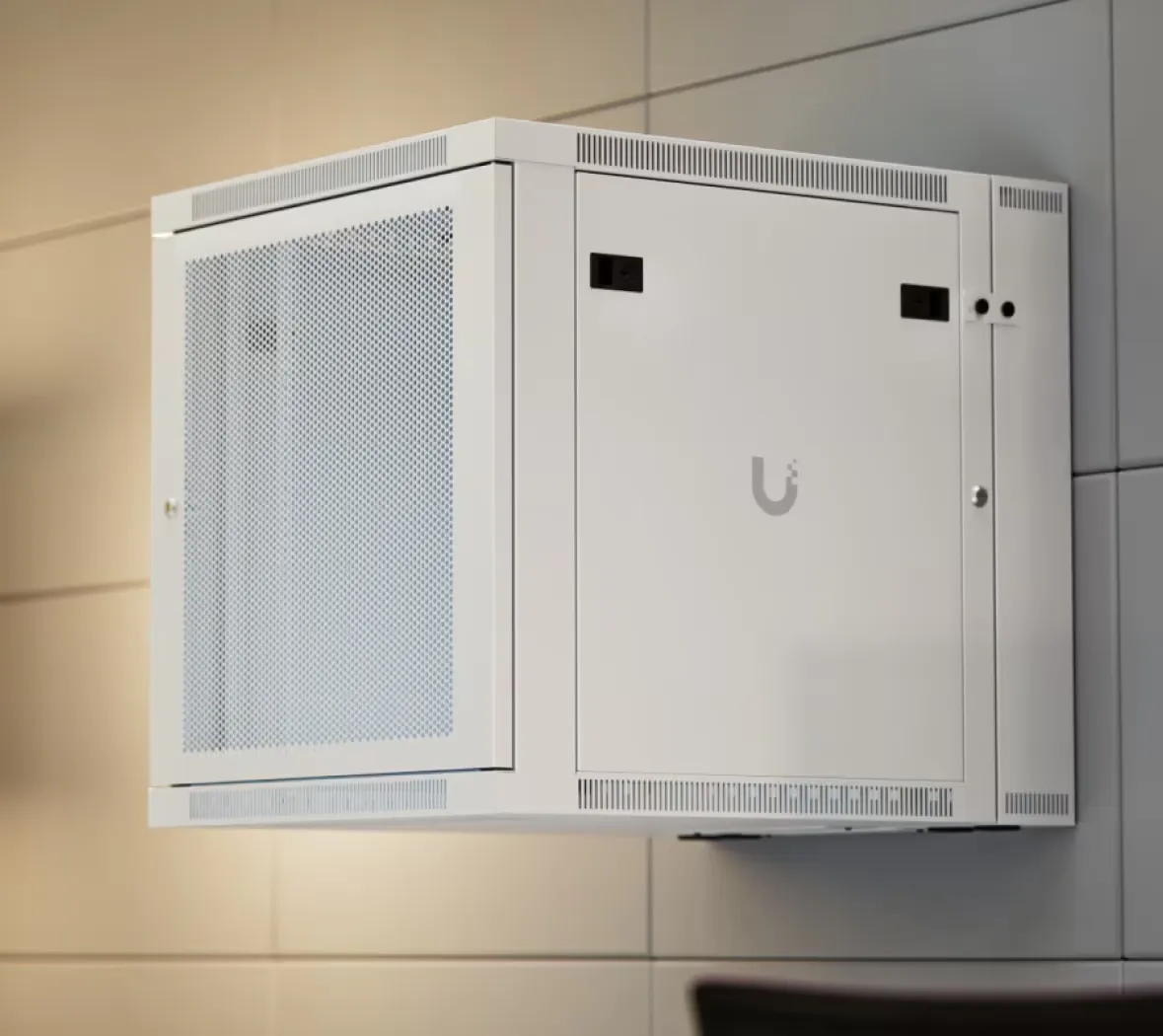

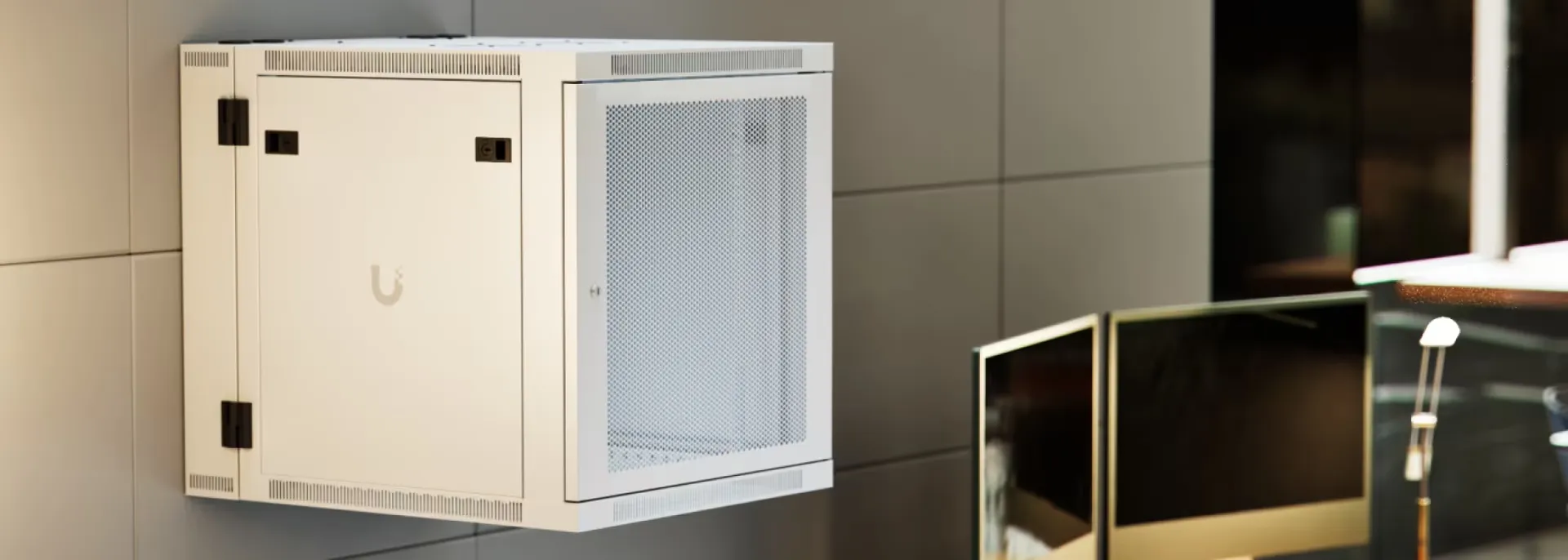

Wall mount

Yes

≤ 50 dB(A) sound pressure level

Yes

(1) Rear wall: 350 x 100 mm (13.8 x 3.9")
(2) Top: 235 x 62 mm (9.3 x 2.4")
(4) Top knockout: 35 mm (1.4")
(1) Bottom: 235 x 62 mm (9.3 x 2.4")
(4) Bottom knockout: 35 mm (1.4")

(1) Front door lock
(1) Swing out door lock
(4) Side panel locks
(2) Keys

CE; EIA/ECA-310-E; RoHS
