Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9")
Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25")

Packaging: 23.2 kg (51.1 lb)
Rack: 19 kg (41.9 lb)

SPCC steel
Door/side panels: 0.8 mm (0.03")
Main body: 0.8 mm (0.03")
Posts: 2 mm (0.08")

White

Powder coating

CE; EIA/ECA-310-E; RoHS

Compatible with Ubiquiti rack-mount devices up to 325 mm in depth.
Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance.

Yes

12U

4 post, enclosed cabinet

Square

Default 283 mm (11.1")
Max. 305 mm (12")
Adjustable pitch 22 mm (0.09")

50 kg (110 lb)

Tempered glass
Default left-hand outswing, reversible

(2) Solid, removable and lockable

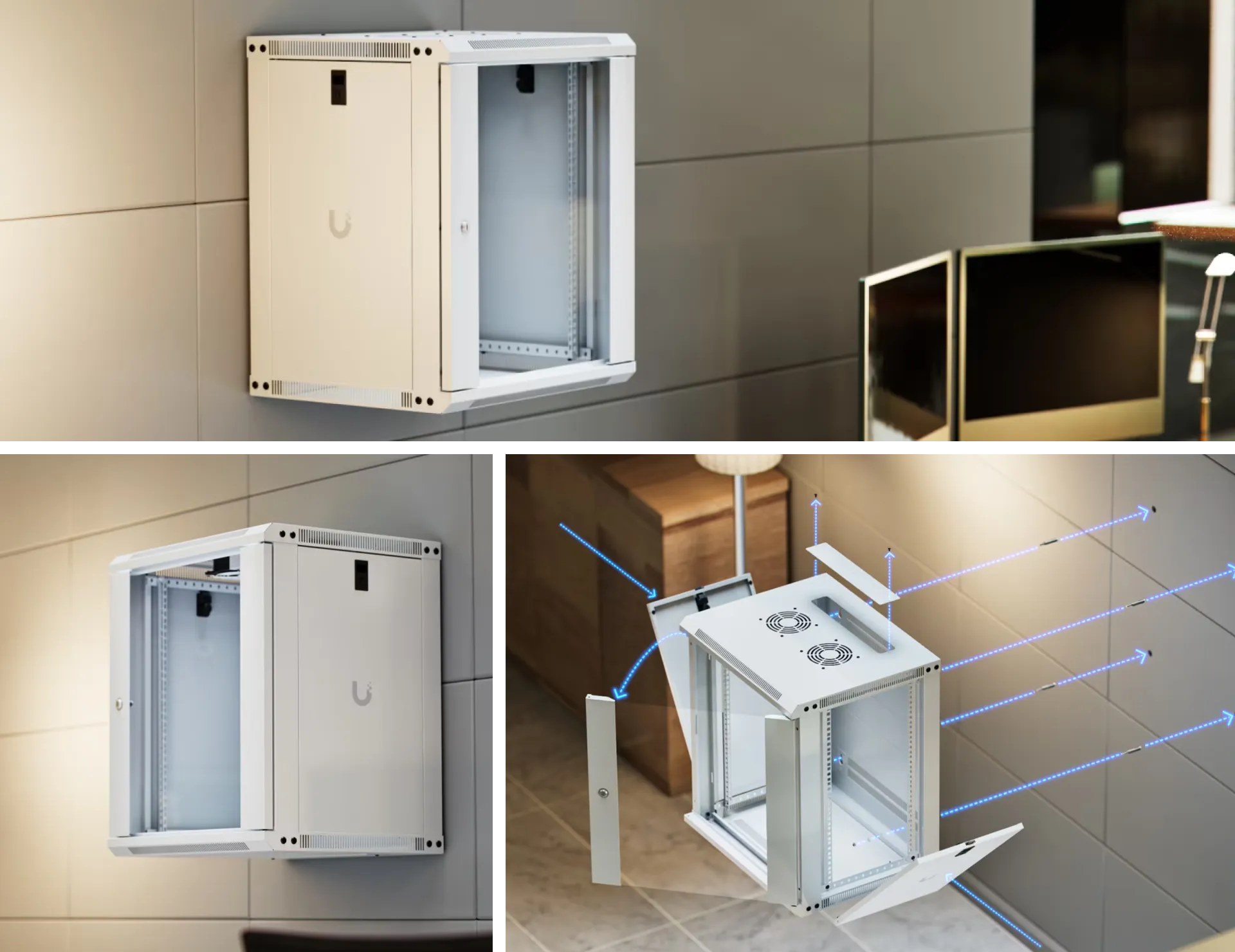

Wall mount

Yes

≤ 50 dB(A) sound pressure level

Yes

(1) Rear wall: 350 x 100 mm (13.8 x 3.9")
(1) Top: 336.5 x 52.5 mm (13.2 x 2.1")
(1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1")

(1) Front door lock
(4) Side panel locks
(2) Keys

CE; EIA/ECA-310-E; RoHS
