Ubiquiti

Ubiquiti UA-G2-Pro UniFi Access G2 Pro Reader (White)

Name: Ubiquiti UA-G2-Pro UniFi Access G2 Pro Reader (White)
Brand: Ubiquiti
SKU: UA-G2-Pro
Price: 729 AUD
Availability: InStock

Write a review

$729.00

G2 Reader Pro

Second-generation NFC card reader and intercom.

Unlock using an NFC card or UniFi Identity mobile app

Doorbell for unlock with video of visitor and two-way intercom

Video works at ADA-compliant mounting height

PIN unlocking on the screen

Connects to UniFi Access Hub using PoE

IP55 rain resistance (-10 to 45° C)

A Magical User Experience

Second-Generation Access Readers

Versatile Access Methods

Pocket Keyfob

Doorbell

One-Click Mobile Unlock

PIN Code

Seamless Installation

The G2 Reader Pro combines advanced functionality with an elegant, minimalist design that seamlessly integrates into modern interiors. Its sleek form factor enhances the aesthetic appeal of any space, ensuring that cutting-edge security doesn’t compromise style.

Deployment

Streamlined Installation with PoE

Powered through PoE, the G2 Reader Pro integrates effortlessly with UniFi Access Control Hubs, simplifying installation and providing a reliable power source.

Mechanical

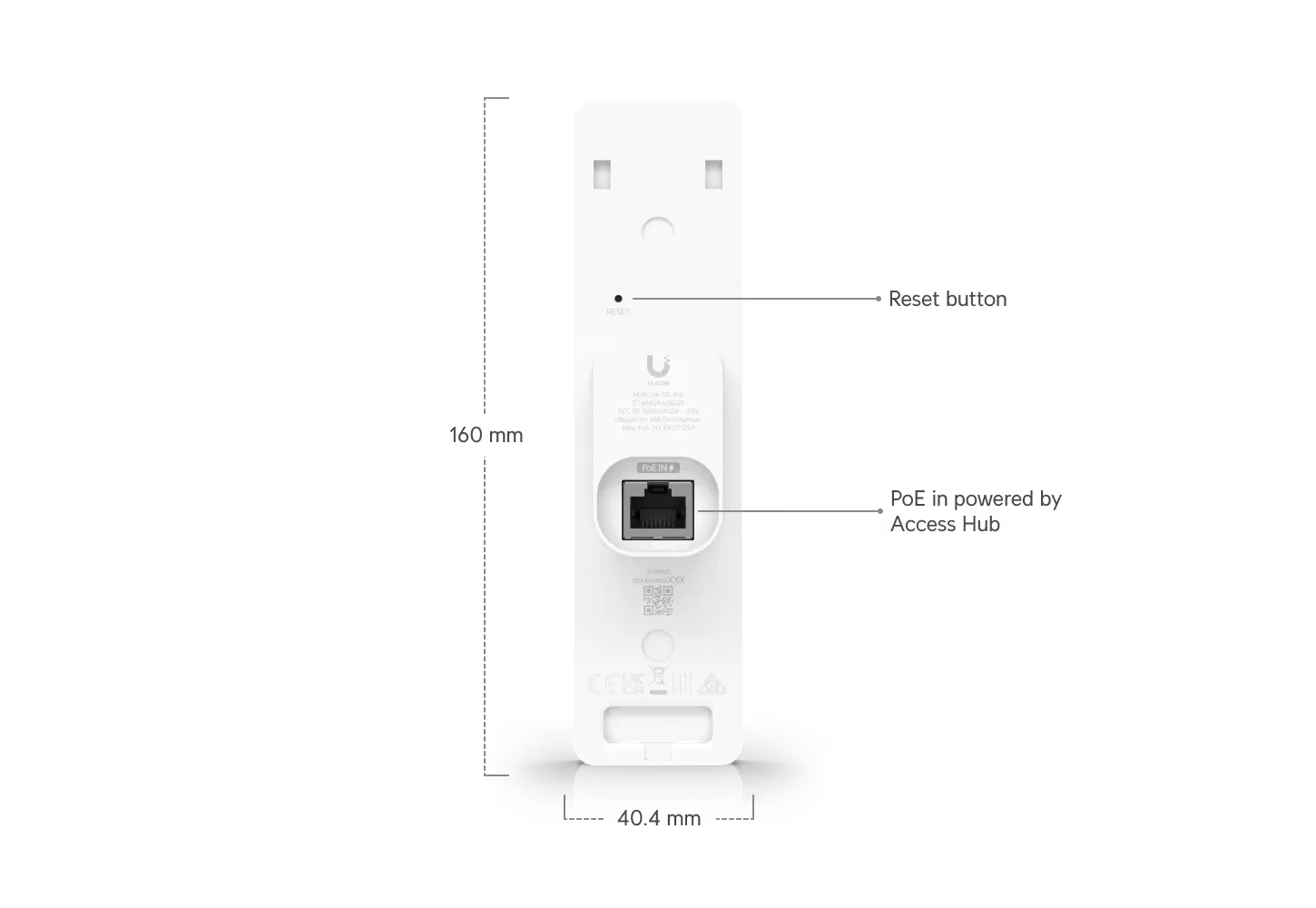

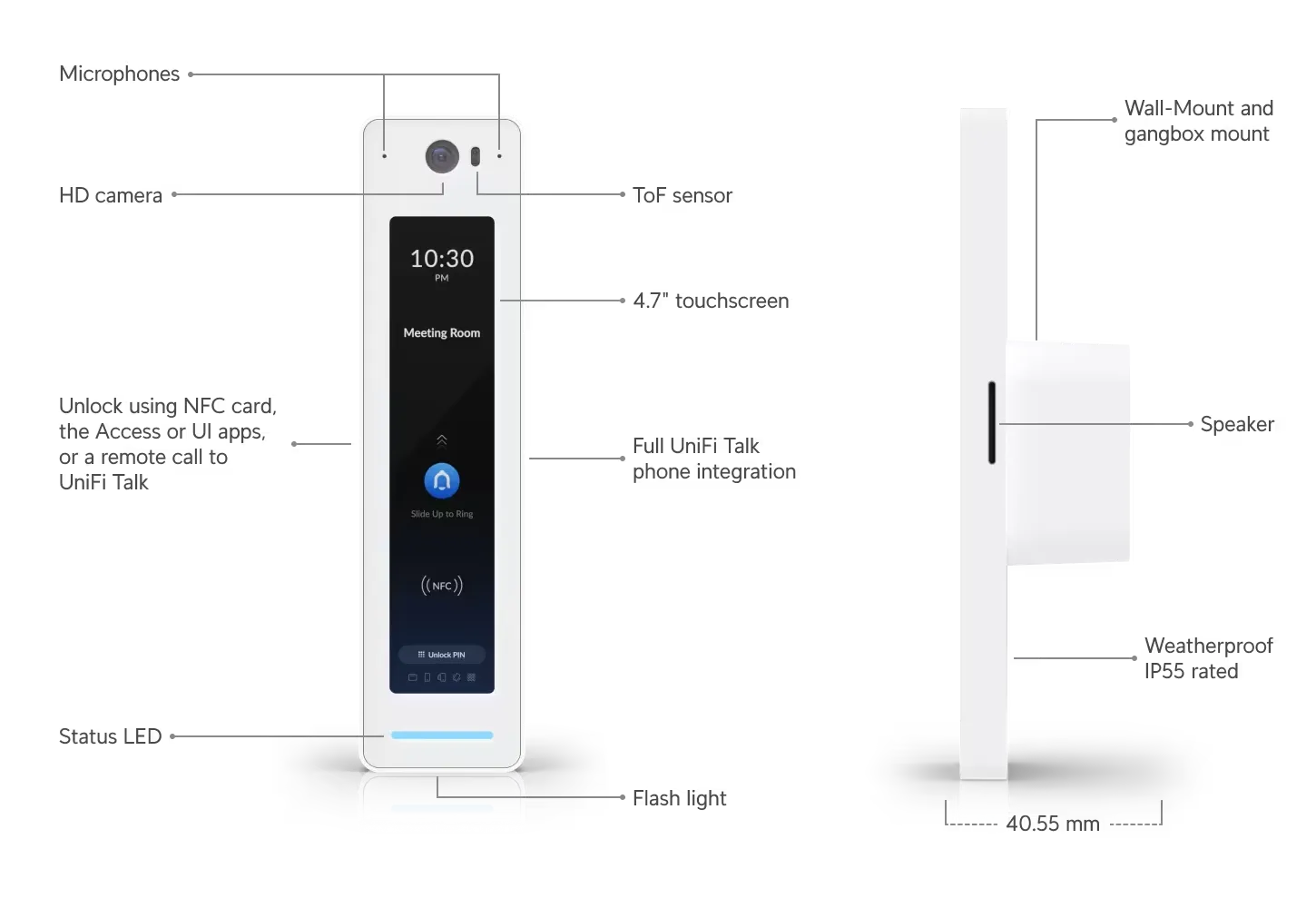

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Weight

136 g (4.8 oz)

Enclosure material

Polycarbonate, glass

Mount material

Aluminium alloy

Mounting

Wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) GbE RJ45 port

Connectivity

BLE 4.2, NFC

Power method

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensor

Proximity sensor

Camera view angle

H: 96.67°, V: 123.15°, D: 153.11°

Microphone

Yes

Speaker

(1) 4 ohm, 1.5W

LEDs

R/G/B/W/Amber

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating environment

Outdoor use

Ambient operating temperature

Device: -30 to 45° C (-22 to 113° F)
Display:* -10 to 45° C (14 to 113° F)

*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)

Ambient operating humidity

5 to 90% noncondensing

Software information

The software version of a product can be checked at https://unifi.ui.com

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G2-Pro, V02

Software

Management application

UniFi Access: Version 1.5.9 and later
